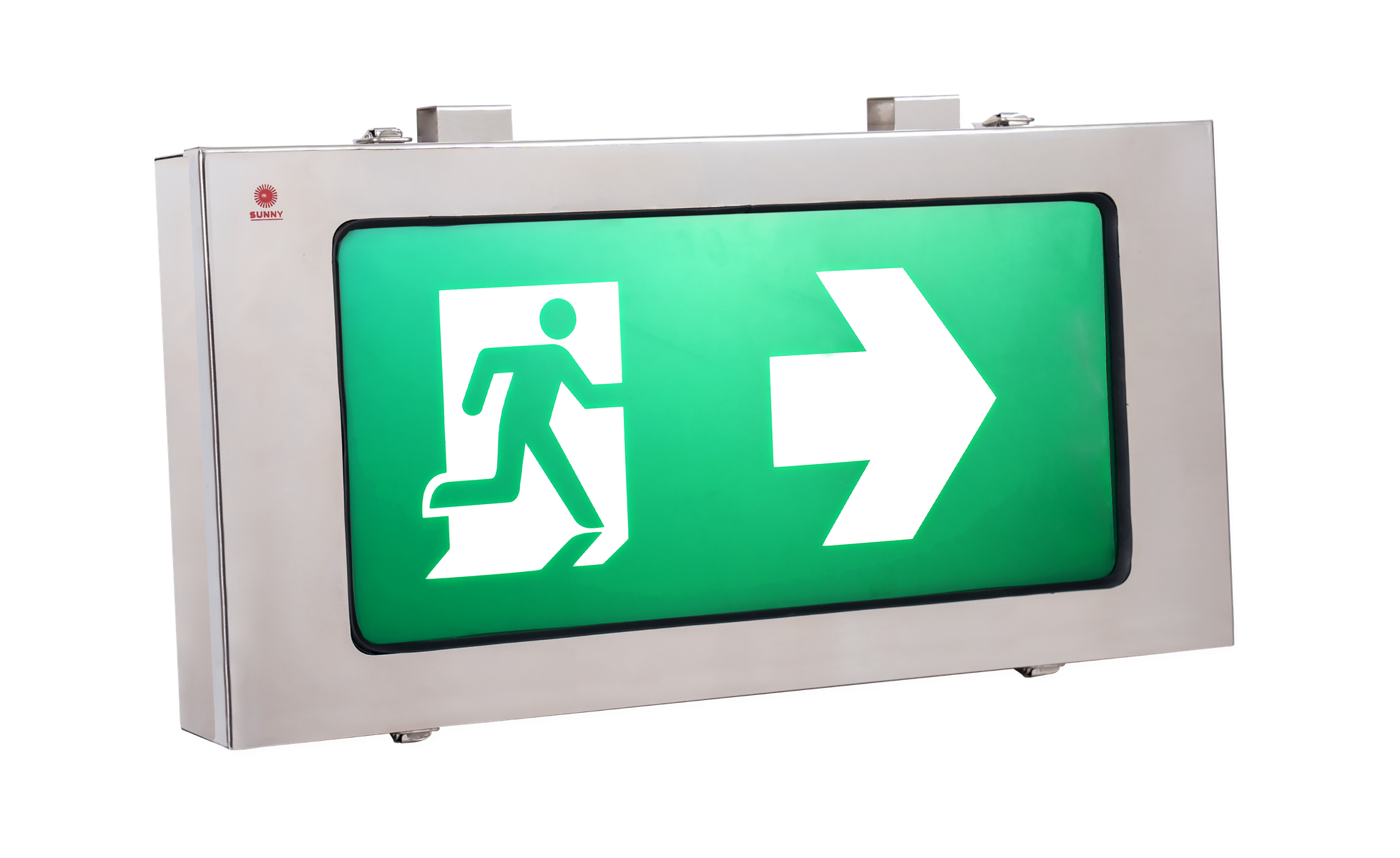

    Weatherproof Exit Sign Light EXST-IP66 Series

    Emergency Exit Sign EXST-IP66 Series, designed for wall-mounted or suspended-mounted installation. The light source utilizes SMD LED, Low Power High Lumen type, with SMT technology, providing higher energy efficiency than conventional fluorescent systems and extended service life. The unit is equipped with an ECO Mode energy-saving function, reducing power consumption during standby and backup operation by approximately 50%, while maintaining illumination in compliance with TIS 2430-2552 and EIT 021004-22.

    The panel is made of high-quality acrylic with excellent light diffusion properties, ensuring uniform illumination across the entire surface.

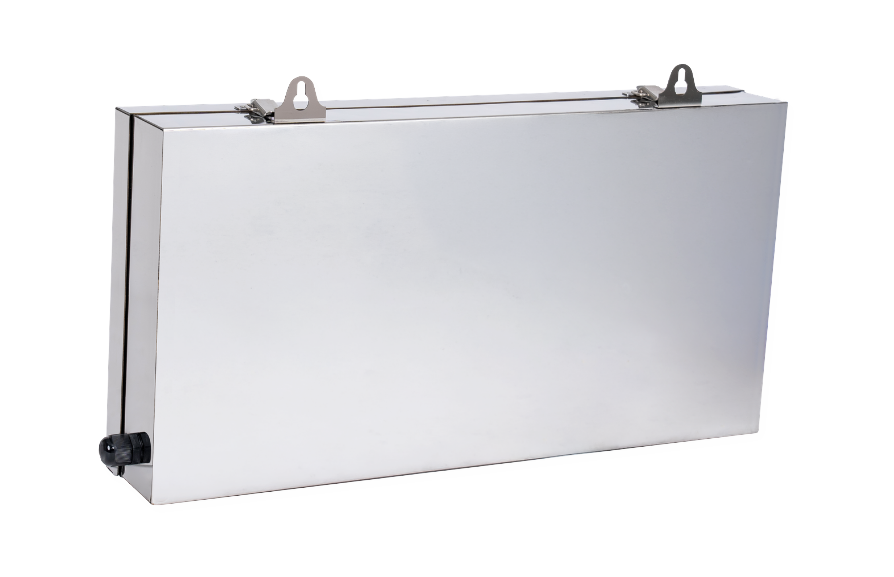

    The housing is constructed from stainless steel grade 304, treated for protection against dust and water spray, and tested by the Electrical and Electronics Institute in accordance with the IP66 protection standard.

    Technical Specifications​
    Mode of Operation
    Maintained
    Operating Temperature
    10 to 50°C
    Input Voltage
    220-240VAC / 50Hz
    LED Lamp Power
    10W
    Color Temperature
    6,500K – 7,000K
    Battery Type
    Lithium Iron Phosphate (LiFePO4)
    Protection Features
    • AC, DC Fuse
    • Battery Low Voltage Cut-Off
    • Surge Protection
    Testing Systems
    • Auto Check
    • Auto Test
    • Remote Test
    Charging Method
    3 Steps Charger System
    Charging Period
    10-15 Hrs
    Backup Time
    3.0 Hrs
    Housing
    Stainless Steel Grade 304
    Dimensions (L x W x H)
    450 x 80 x 230 mm
    Weight
    3.65-4.65 Kg
    Degree of Protection
    IP66
    Mounting
    Surface Wall / Suspended Ceiling
    Viewing Distance
    24 M (Pictogram Height 10 CM)
    Accessory
    Infrared Remote Control (RT-S4)
    Standards / Compliance
    • TIS.1955-2551
    • ISO9001
    • CE

    Features

    • Bulb
    • Highly efficient and super bright 10 Watts LEDs provides maximum brightness while saving on power consumption. It also offers long operational life of more than 50,000 hours.
    • Battery
    • Use Lithium Iron Phosphate (LiFePO4) 3.2V-2000mAh, backup power for 3 hours. It has the advantages of light weight, long service life and high power. It also causes less pollution.
    • Functions
    • Auto Check for key components abnormalities such as the battery, bulbs, fuses, lighting circuits, and battery charging system (patent number 21778)
    • Auto Test schedule: 1 month every 60 seconds, 1 year every 120 minutes (according to standard EIT.021004-22), activate and deactivate functions with a remote control.
    • A 30-minute, 60-minute or 120-minute self-test can be performed on the unit using the remote.
    • ECO Mode, an energy-saving system that helps reduce power consumption by approximately 50% during standby and backup, while maintaining sign luminosity levels in accordance with TIS and EIT standards.
    • Circuit Systems
    • Controlled by an 8-bit microcontroller circuit.
    • Protection Features
    • AC and DC fuse to prevent current overload.
    • Surge Protection.
    • IP66 dust and water resistant.
    • Features to Extend Battery Life
    • An innovative 3 Steps Charger System.
    • A Low Voltage Cut-Off to prevent the battery from draining completely.
    • Warning Systems
    • An LED will blink 3 times every 15 seconds to indicate that the system performs an automatic. battery test (Auto Test) and detects that the backup lighting emergency duration is less than 120 minutes (Battery Fail).
    • An LED will blink 4 times every 15 seconds to indicate that there is a problem charging the battery (Charging Fail).
    • An LED will blink 5 times every 15 seconds to indicate that an abnormality in the lighting system (Lighting Fail)

    Installation

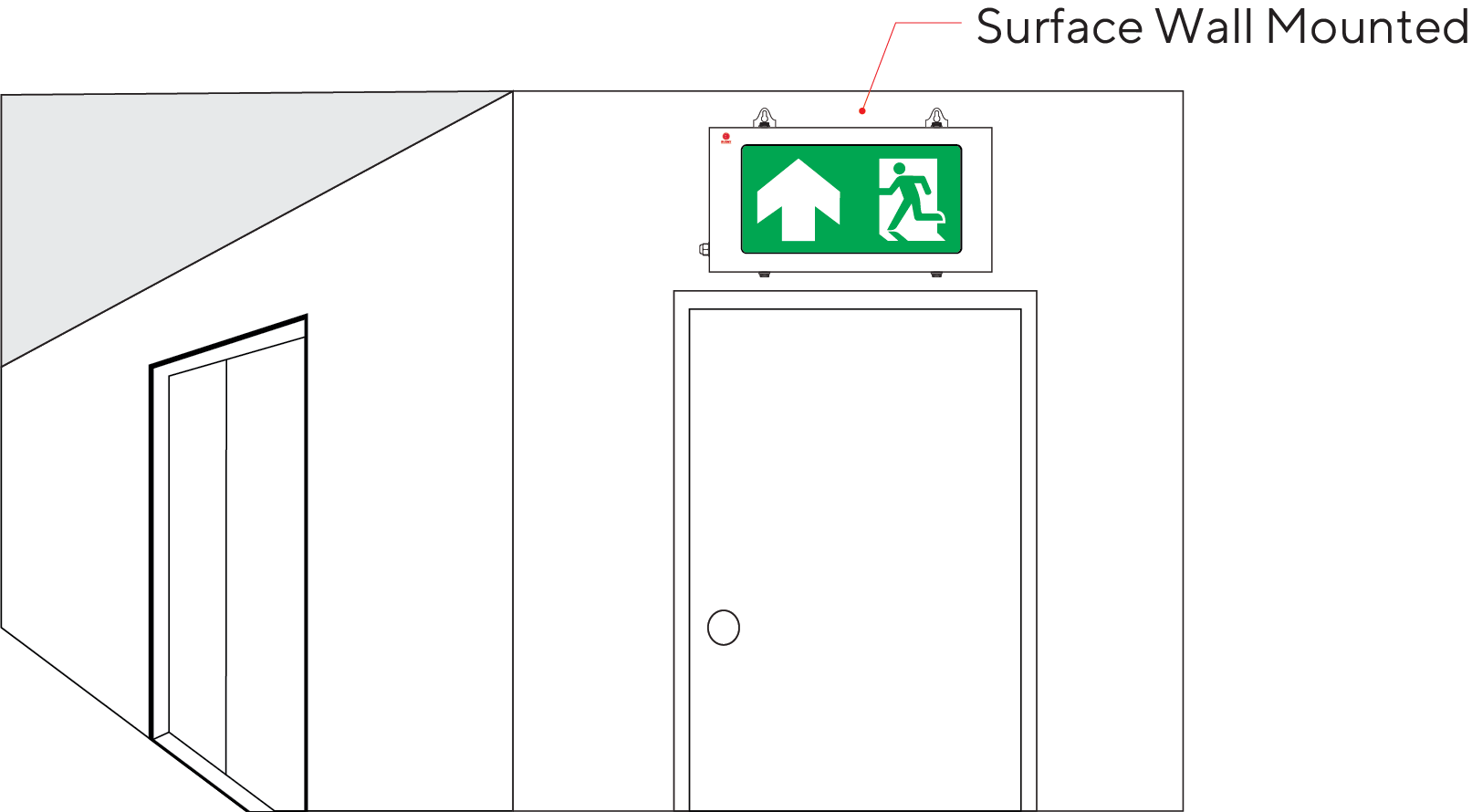

    Installation_Single

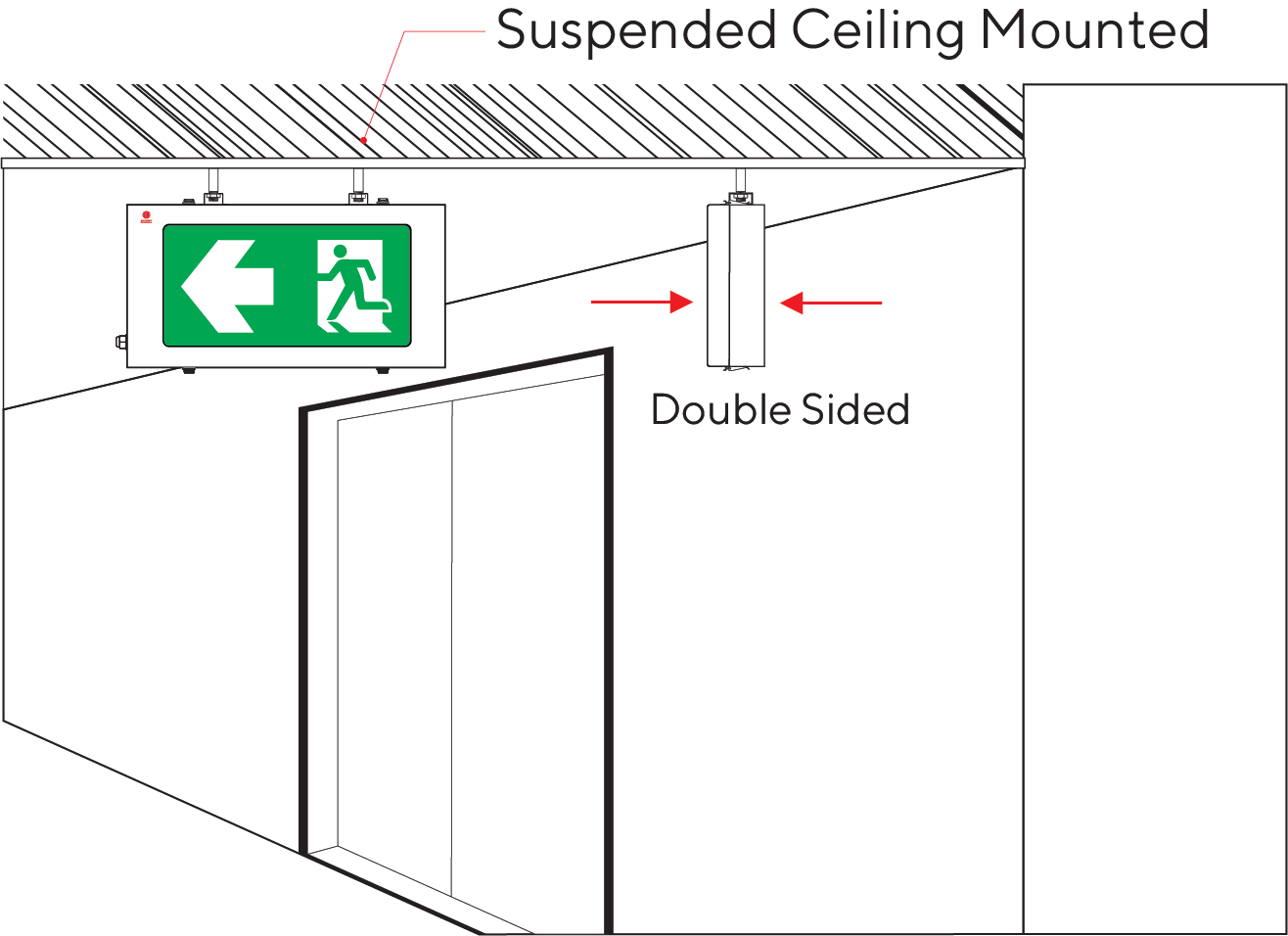

    Installation_Double

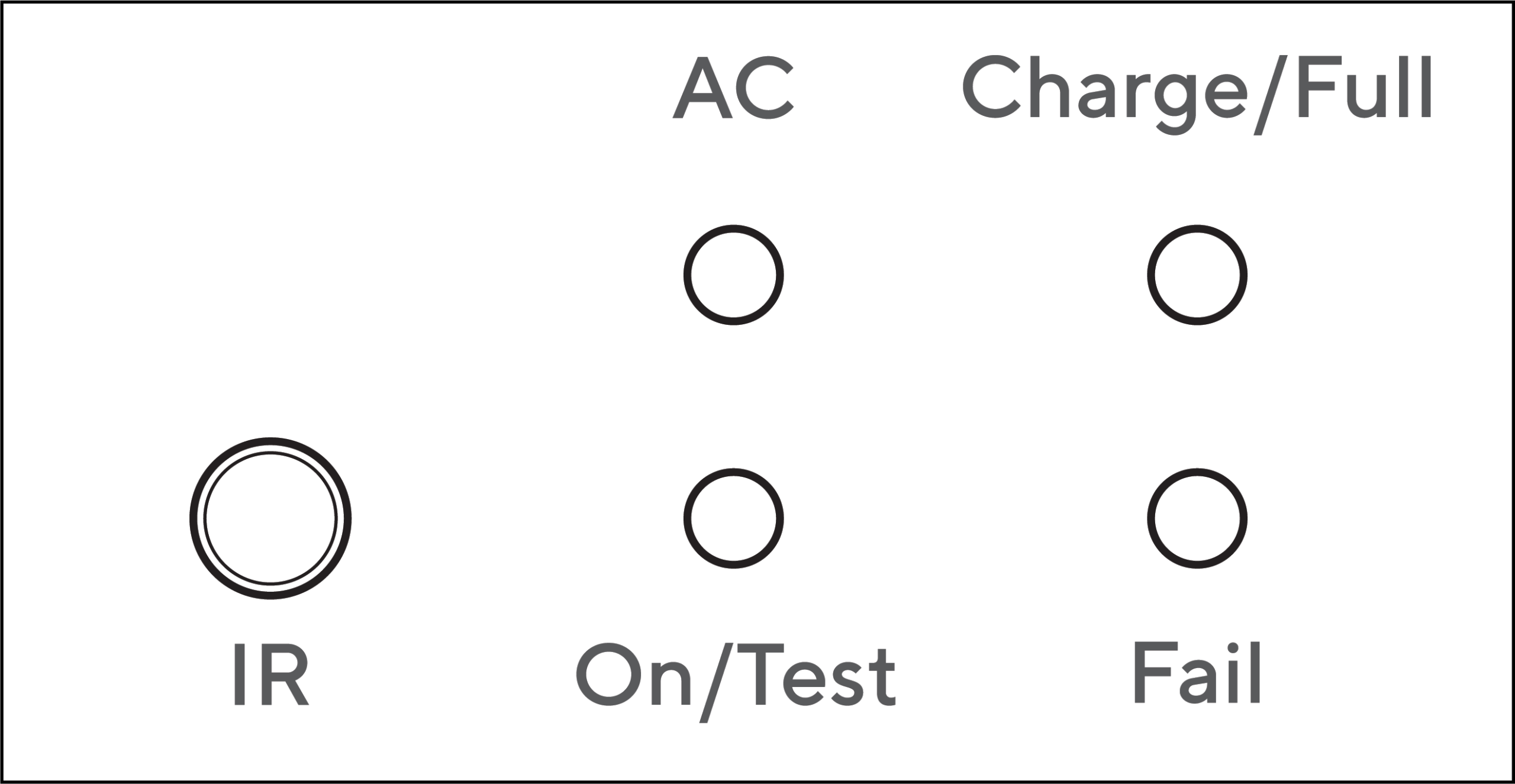

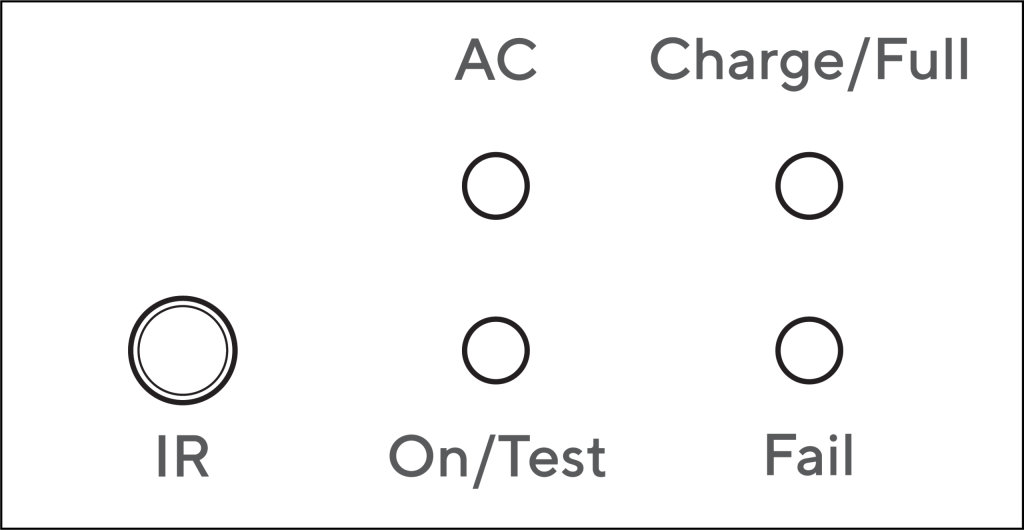

    Indicators
    LED AC
    Indicates that the unit is receiving a power supply
    LED Charge/Full
    Indicates that the unit’s battery is charging /
    Indicates if the unit is performing a self-test using
    remote control 120-minute
    IR
    Infrared signal receiver
    LED On/Test
    Indicates that the unit is receiving a power /
    Indicates if the unit is performing a self-test /
    Indicates if the unit is performing a self-test using remote control 30-minute or 60-minute
    LED Fail
    Indicates there is a problem with the battery

    Dimensions (mm)

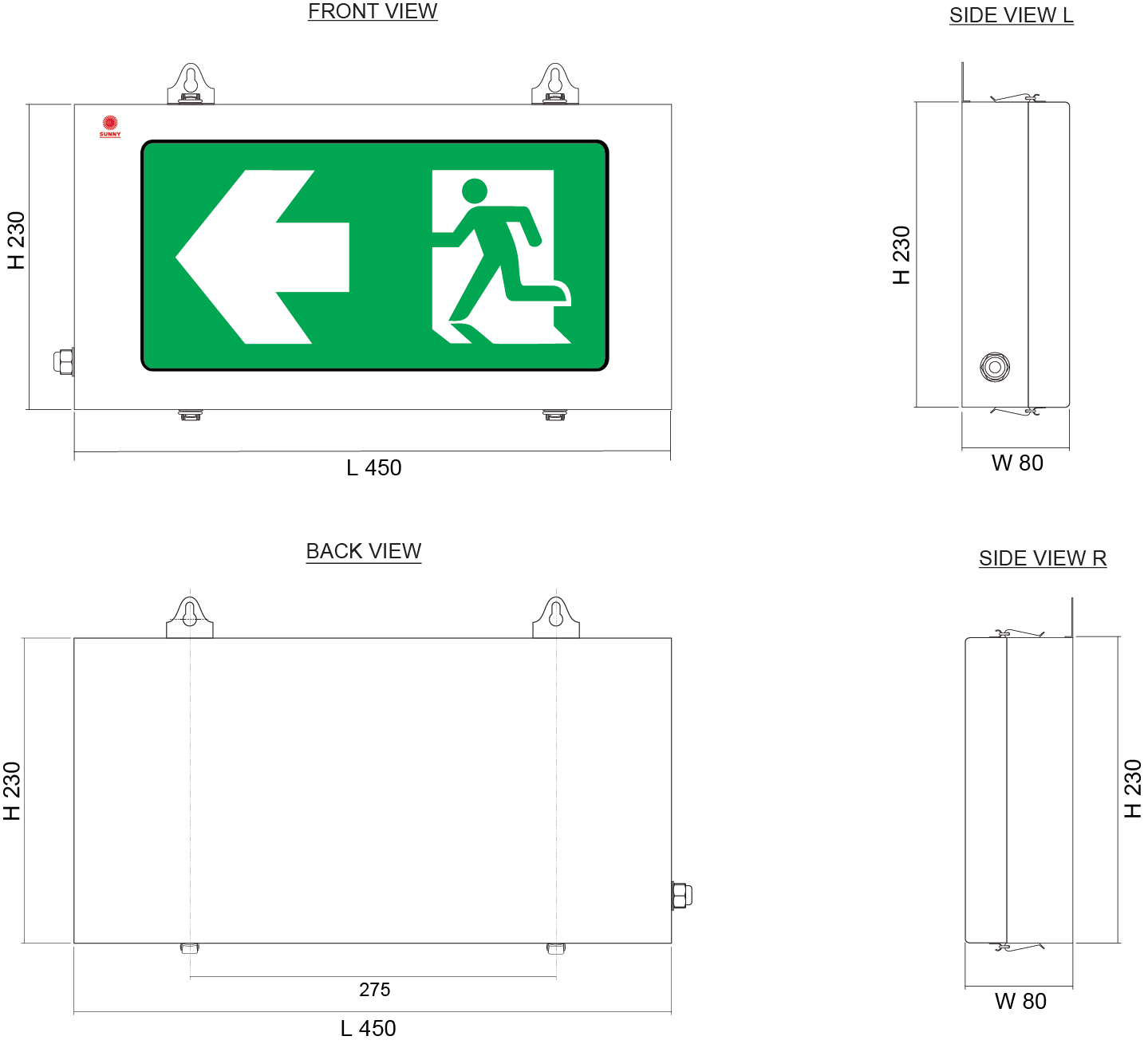

    Dimensions-EXST_Single

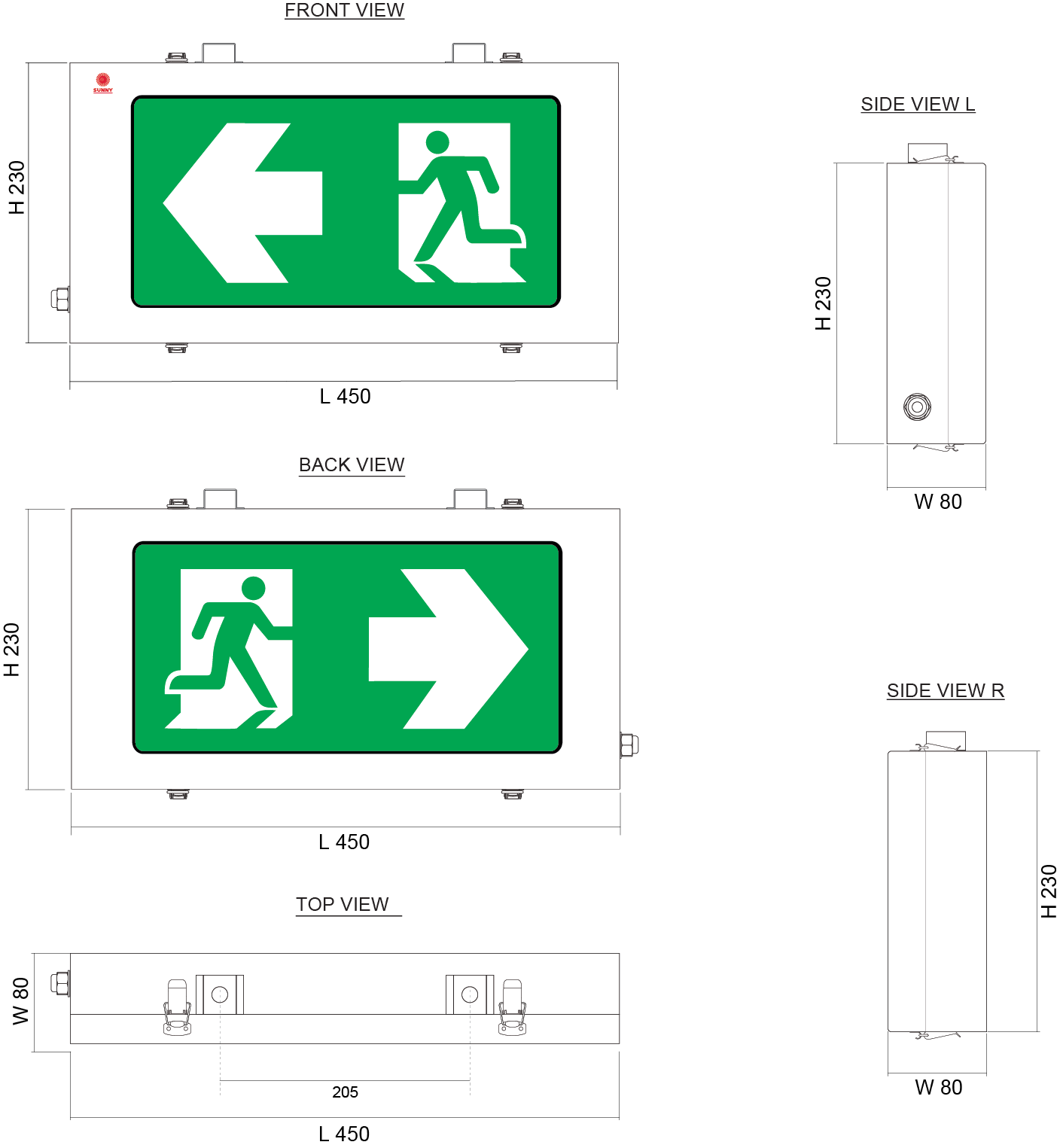

    Dimensions-EXST_Double

    EXST-IP66 Series | Spec Sheets

    Model
    Sided
    Battery Capacity
    LED Strip Lamp
    Back up (hr.)
    Length (mm)
    Width (mm)
    Height (mm)
    Weight (kgs.)
    EXST-S6LED/S
    1
    3.2V-2000mAh
    10W
    3
    450
    80
    230
    3.65
    EXST-S6LED/D
    2
    3.2V-2000mAh
    10W
    3
    450
    80
    230
    4.65
