DLJ Series
Downlight Lamp recessed ceiling type DLJ151 Series. The lamp can adjust the direction of the beam for 45 degrees. The lamp works with the installation of LED bulb LED MR16 GU5.3 by operating with emergency lighting control system. Central battery control unit of 12Vdc, 24Vdc and 220Vac in case of power failure, will provide emergency lighting for escape.

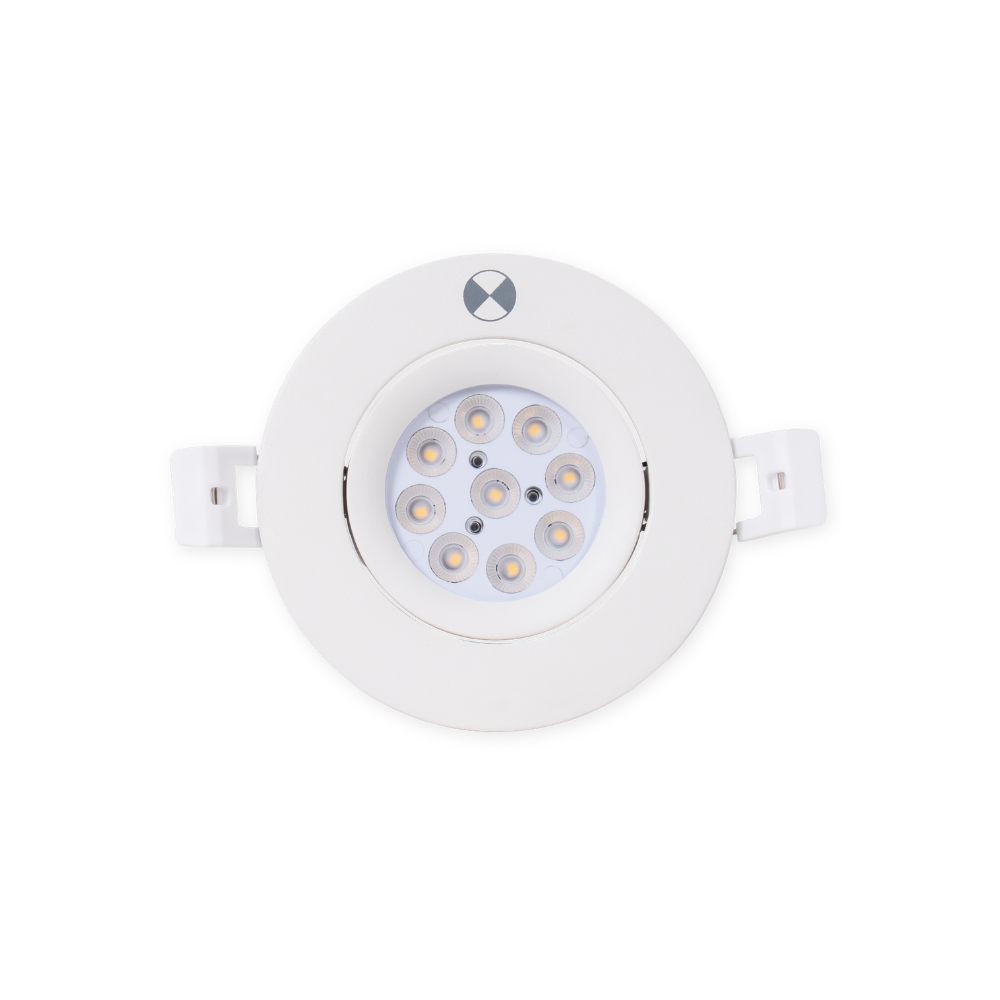

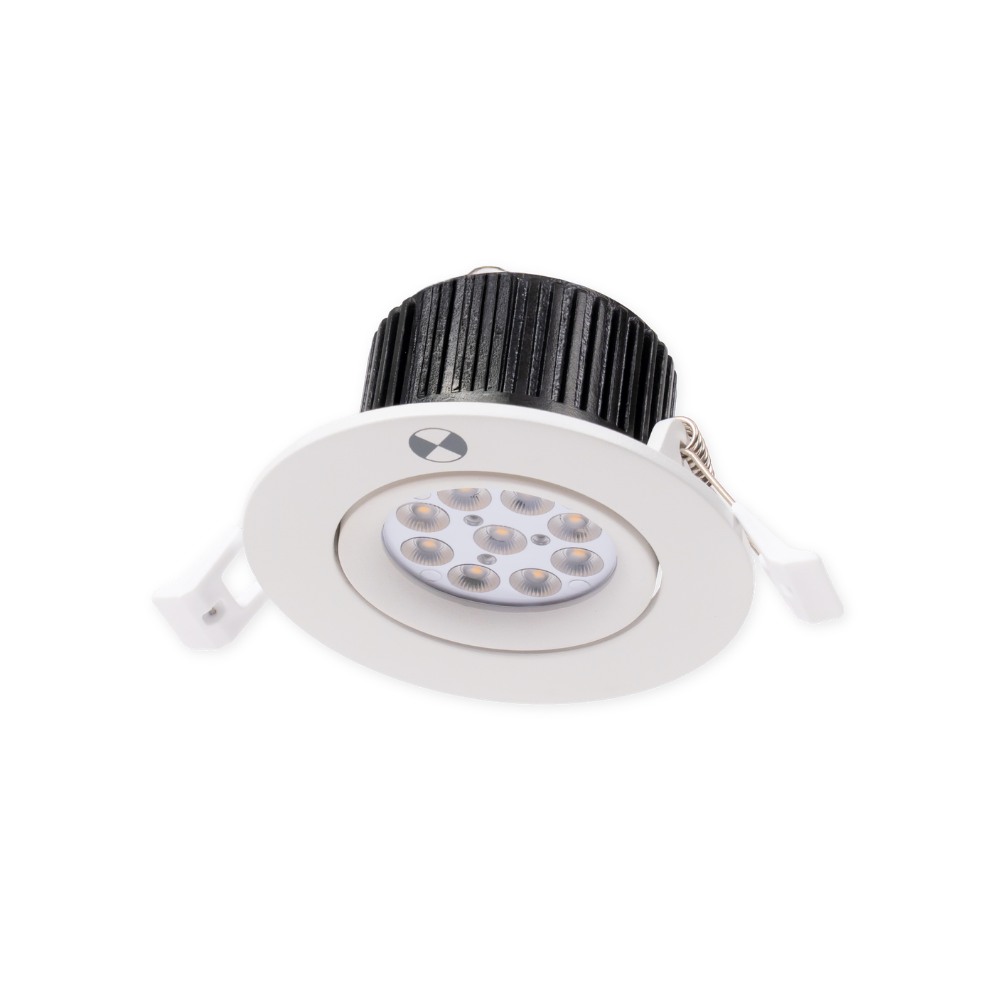

DLC Series
Downlight Lamp recessed ceiling type DLC Series. The lamp can adjust the direction of the beam for 45 degrees. The lamp works with the installation of LED bulb LED MR16 GU5.3 by operating with emergency lighting control system. Central battery control unit of 12Vdc, 24Vdc and 220Vac in case of power failure, will provide emergency lighting for escape.

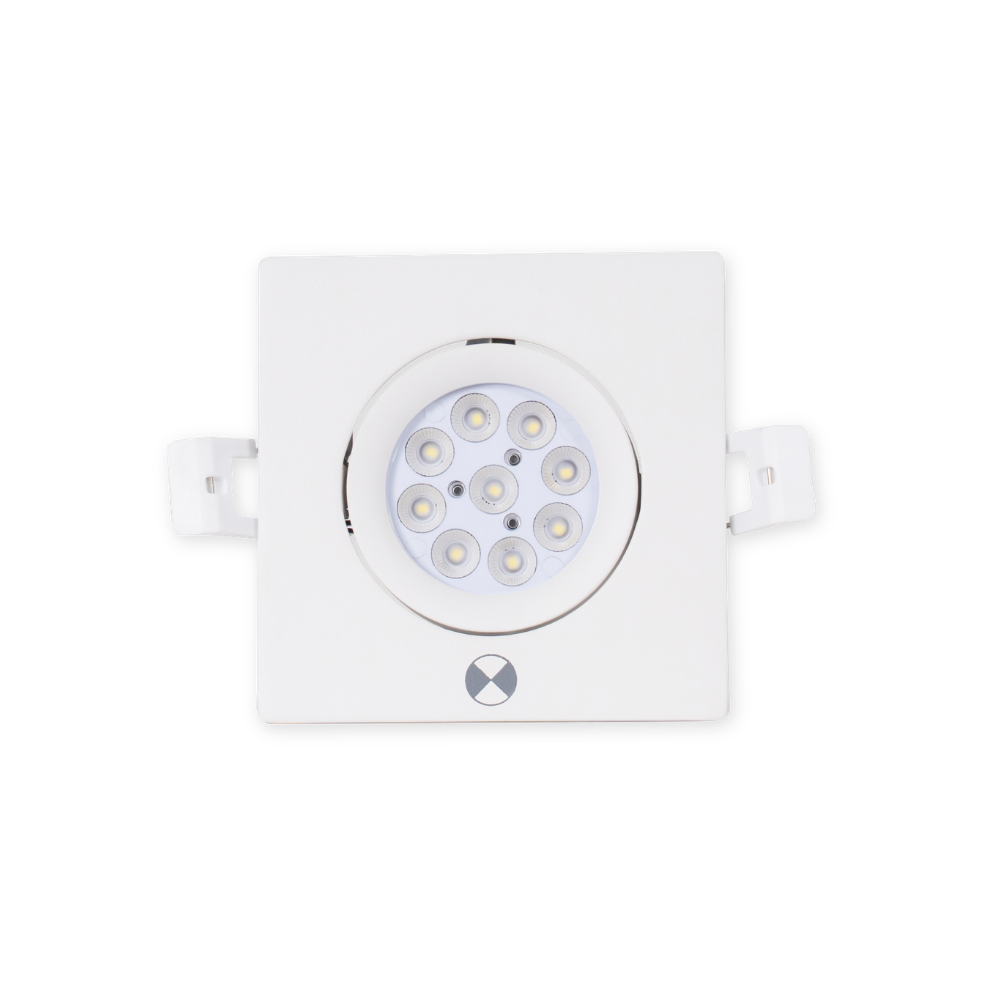

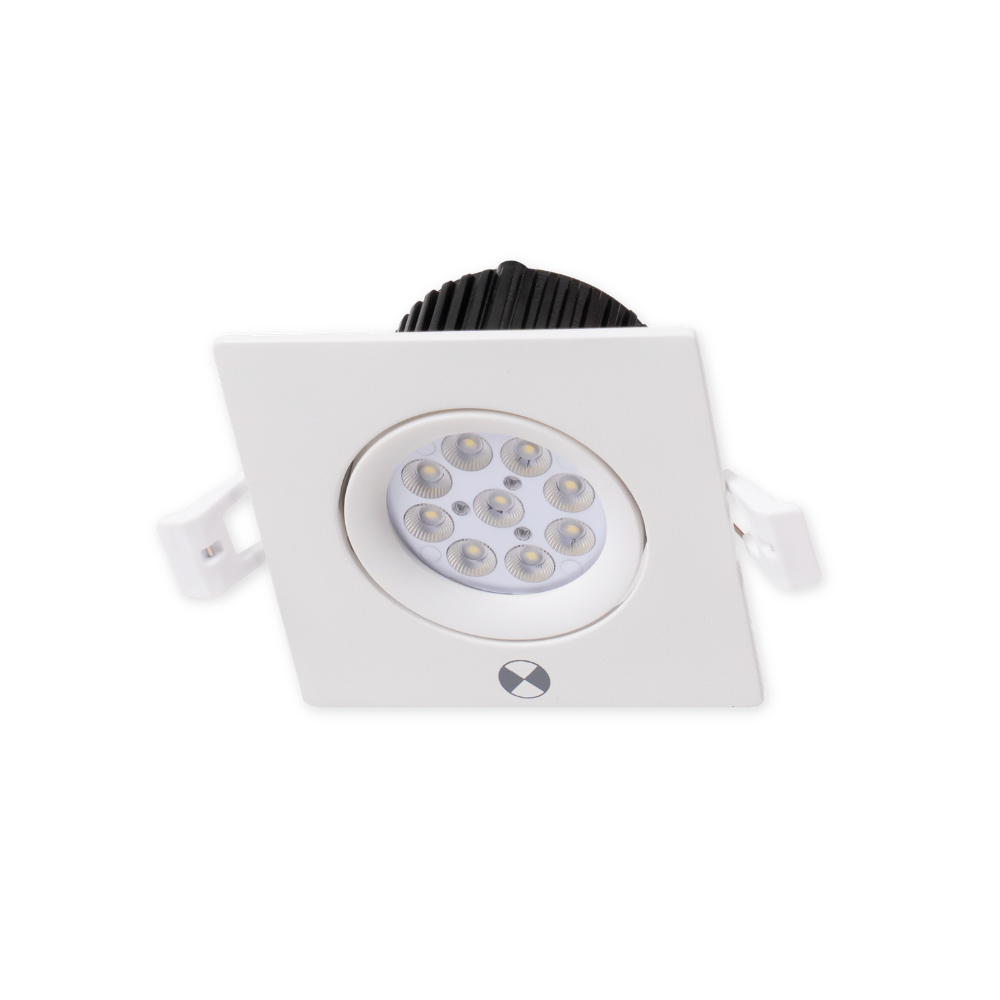

DLS Series
Downlight Lamp recessed ceiling type DLS Series. The lamp can adjust the direction of the beam for 45 degrees. The lamp works with the installation of LED bulb LED MR16 GU5.3 by operating with emergency lighting control system. Central battery control unit of 12Vdc, 24Vdc and 220Vac in case of power failure, will provide emergency lighting for escape

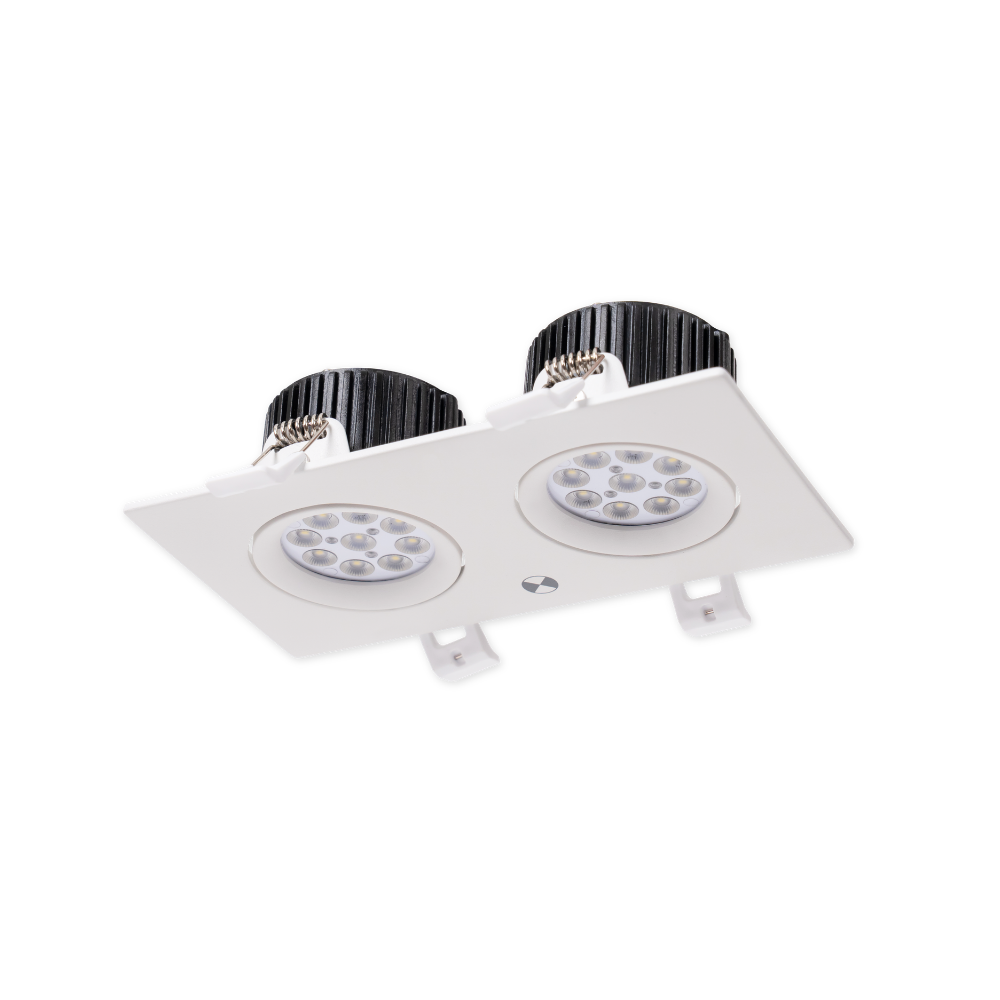

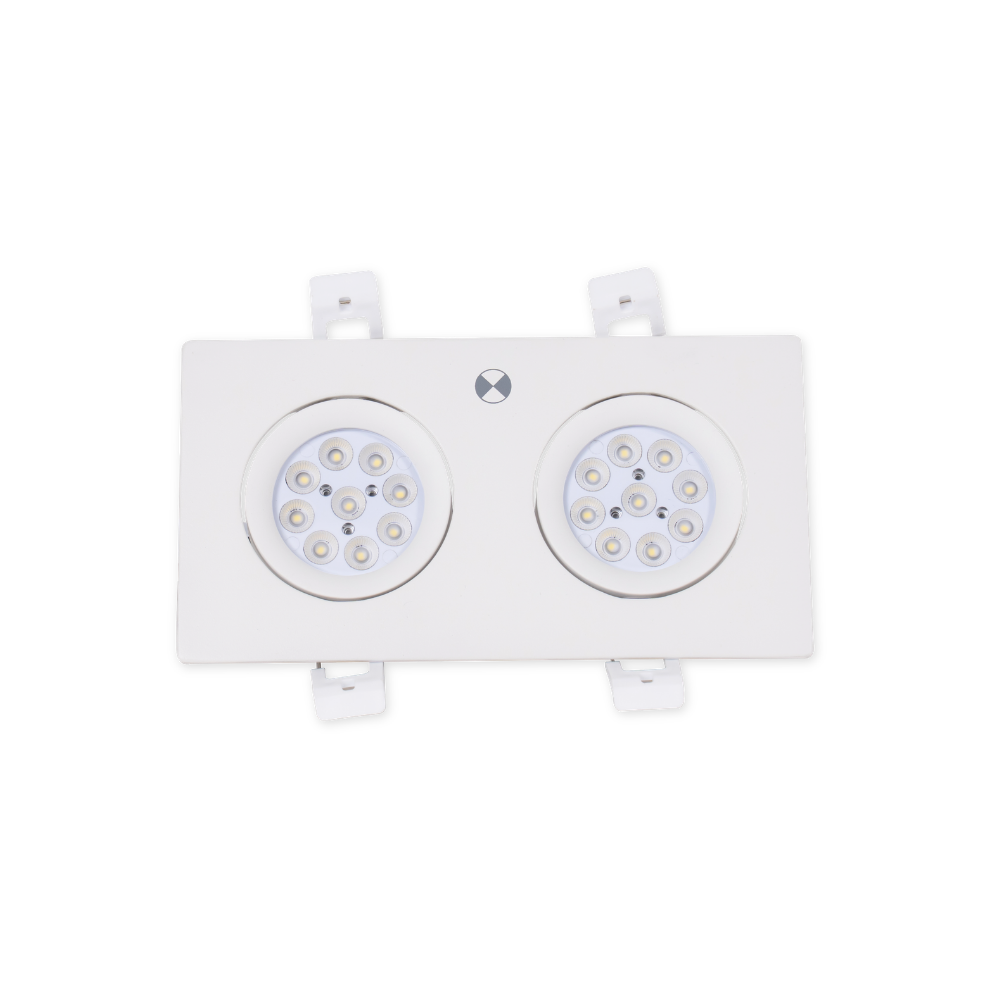

DLSS Series
Downlight Lamp recessed ceiling type DLSS Series. The lamp can adjust the direction of the beam for 30 degrees. The lamp works with the installation of LED bulb LED MR16 GU5.3 by operating with emergency lighting control system. Central battery control unit of 12Vdc, 24Vdc and 220Vac in case of power failure, will provide emergency lighting for escape.
Technical Specifications
Input Voltage | 12VDC / 24VDC / 220VAC |
Lamp Type | LED MR16 |
Base | GU5.3 |
CCT | 3,000k ± 250k 6,000k ± 250k |
CRI | >80 |
Lamp Life Time | 50,000Hrs. |
Beam Angle | 50 Degree |
IP Rating | 20 |
Material | Diecasting aluminium |
Lamp Warranty | 10 Year |
Mounted | Recessed Ceiling |
Dimensions (mm)
LED Downlight | Spec Sheets
Model | Input Voltage | LED Lamp Power | Lamp (Bulb) | Lumen (lm) / Bulb | Dimension LxWxH (mm) | Weight (g) | Hole cut (mm) |
|---|---|---|---|---|---|---|---|
DLJ151 12-109 | 12VDC | 9W | 1 | 810 | 127x127x80 | 240 | 110 |
DLJ151 12-112 | 12VDC | 12W | 1 | 1,080 | 127x127x80 | 240 | 110 |
DLJ151 24-109 | 24VDC | 9W | 1 | 810 | 127x127x80 | 270 | 110 |
DLJ151 24-112 | 24VDC | 12W | 1 | 1,080 | 127x127x80 | 270 | 110 |
DLJ151 220-109 | 220VAC | 9W | 1 | 810 | 127x127x80 | 270 | 110 |
DLJ151 220-112 | 220VAC | 12W | 1 | 1,080 | 127x127x80 | 270 | 110 |
DL-C 12-109 | 12VDC | 9W | 1 | 810 | 103x103x60 | 160 | 90 |
DL-C 12-112 | 12VDC | 12W | 1 | 1,080 | 103x103x60 | 160 | 90 |
DL-C 24-109 | 24VDC | 9W | 1 | 810 | 103x103x60 | 190 | 90 |
DL-C 24-112 | 24VDC | 12W | 1 | 1,080 | 100x103x60 | 190 | 90 |
DL-C 220-109 | 220VAC | 9W | 1 | 810 | 103x103x60 | 210 | 90 |
DL-C 220-112 | 220VAC | 12W | 1 | 1,080 | 103x103x60 | 210 | 90 |
DL-S 12-109 | 12VDC | 9W | 1 | 810 | 100x100x60 | 160 | 90 |
DL-S 12-112 | 12VDC | 12W | 1 | 1,080 | 100x100x60 | 160 | 90 |
DL-S 24-109 | 24VDC | 9W | 1 | 810 | 100x100x60 | 190 | 90 |
DL-S 24-112 | 24VDC | 12W | 1 | 1,080 | 100x100x60 | 190 | 90 |
DL-S 220-109 | 220VAC | 9W | 1 | 810 | 100x100x60 | 210 | 90 |
DL-S 220-112 | 220VAC | 12W | 1 | 1,080 | 100x100x60 | 210 | 90 |
DL-SS 12-209 | 12VDC | 2x9W | 2 | 810 | 175x103x90 | 480 | W85 x L155 |
DL-SS 12-212 | 12VDC | 2x12W | 2 | 1,080 | 175x103x90 | 480 | W85 x L155 |
DL-SS 24-209 | 24VDC | 2x9W | 2 | 810 | 175x103x90 | 510 | W85 x L155 |
DL-SS 24-212 | 24VDC | 2x12W | 2 | 1,080 | 175x103x90 | 510 | W85 x L155 |
DL-SS 220-209 | 220VAC | 2x9W | 2 | 810 | 175x103x90 | 530 | W85 x L155 |
DL-SS 220-212 | 220VAC | 2x12W | 2 | 1,080 | 175x103x90 | 530 | W85 x L155 |
