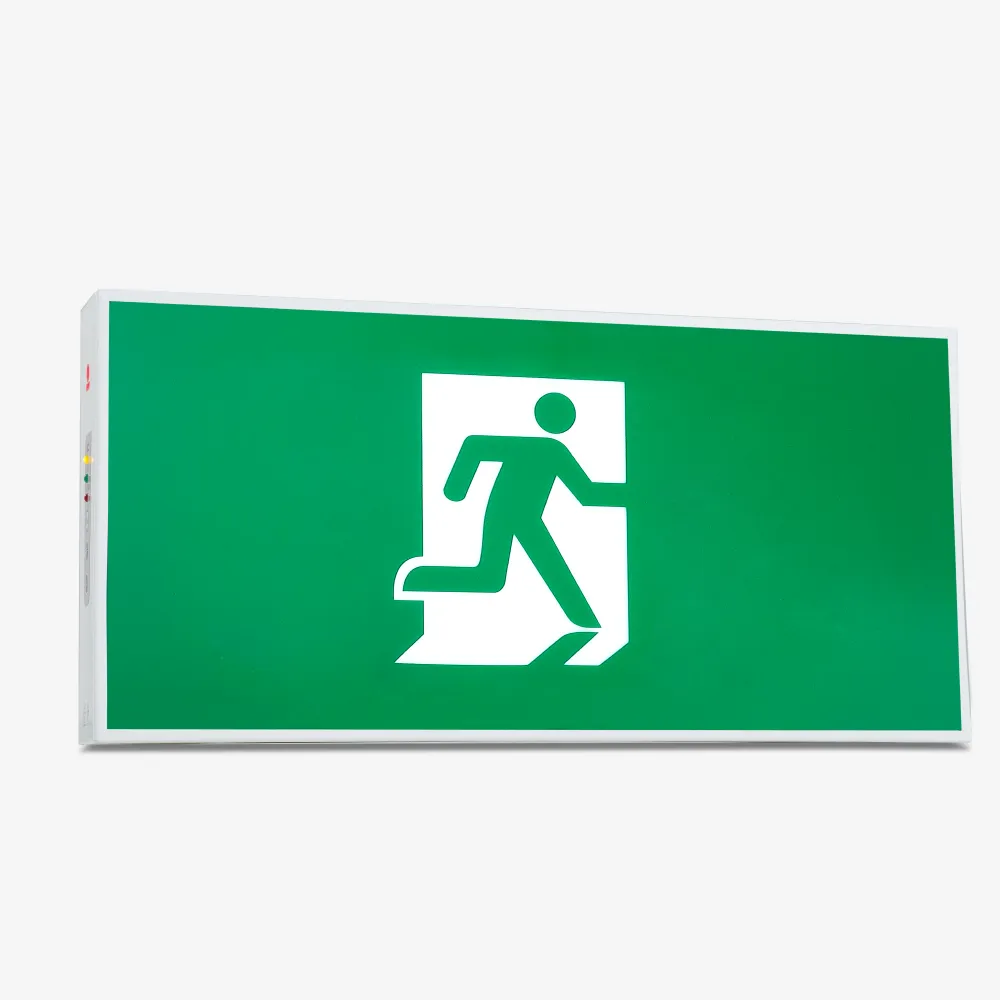

EX Series 5
ป้ายทางหนีไฟ ป้ายทางออกฉุกเฉิน รุ่น exs5
ป้ายทางหนีไฟ ป้ายทางออกฉุกเฉิน รุ่น exs5
ป้ายทางหนีไฟ ป้ายทางออกฉุกเฉิน รุ่น exs5

EX Series 5

Model : EXS5 Product Type : Tags : , , ,

PRODUCT FEATURES

  • Uses high power LEDs rated at 12 Watts for illumination.
  • Having LED lifetime of over 50,000 hours.
  • Operate for 2.0 hours on backup time.
  • Automatically recharged with constant voltage and limited current.
  • Battery overcharge protection circuit prevents overcharge which is the cause of battery swelling.
  • Battery discharge protection circuit prolongs the battery life.
  • Pictorial element height 15 cm.

DOWNLOAD SPEC SHEET

| EXS5-12LED/S | EXS5-12LED/D |

Select options
    Clear

    More Details

    Distribution Channels

    The EXS5-12LED (Single sided / Double sided) emergency exit sign can be surface wall mounted and ceiling mounted. The LEDs used for illumination are SMD low Power High Lumen type. Its uses SMT technology that consumes 6 times less electricity than those 2430-2552 and Thailand Engineering Standard 021004-18 The unit uses Ni-MH (Nikle Metal Hydride) batteries that are smaller but The sign is made with white semi-translucent acrylic that evenly diffuse the light throughout the whole sign, even after an extended period of use. steel The chassis is made with 1 mm. thick Electro-Galvanized sheets coated with Epoxy powder and stove enameled to help protect from any possible rust

    Mode of Operation

    Maintained
    Input Voltage

    220 VAC / 50Hz±10%
    LED Lamp Power

    12W
    Color Temperature

    6,500k±7,000k
    Battery Type

    Ni-MH 2,100 mAh. (1.2Vx3)
    Charging Current

    0.120A
    Charge Termination Voltage

    1.4V/Cell
    Charging Time

    12 Hrs.
    Backup Time

    2.0 Hrs.
    IP Rating

    IP 20
    Features

    Without Auto test
    Sided

    1 Sided, 2 Siede
    Mounted

    Ceiling, Wall, Suspended
    Viewing Distance

    36 M
